Structural Welding Inspection

Any engineer who has been on a civil construction site knows that time is the most expensive resource. Having a crane stopped or delaying the assembly of a structure because the quality report is not ready is a luxury that current projects cannot afford. As we well know in the industry, trying to save time or budget by skipping critical validations or using unreliable equipment often ends up in massive rework or, worse yet, catastrophic failures.

The inspection of structural welds is not just an administrative procedure to fill out a logbook; it is the backbone of safety in any infrastructure project. Nowadays, the demand for standards such as AWS D1.1 requires that non-destructive testing (NDT) be accurate, but above all, swift under the worst field conditions.

AWS D1.1 Certification in Civil Works

The AWS D1.1 code (Structural Welding Code - Steel) is specific to the welding of steel structures. This standard establishes extremely strict acceptance and rejection criteria using conventional ultrasonic testing (UT). Complying with the AWS D1.1 certification requires millimeter precision, calculating attenuation factors and exact reference levels.

This is where non-destructive testing in civil works faces its greatest challenge: the environment. It is not the same to inspect a sample in a laboratory as it is to perform an ultrasonic weld evaluation 20 meters high, hanging from a harness, dealing with weather conditions and safety equipment during the inspection process.

Use cases

In Mexico, infrastructure demands equipment that can keep up:

• Inspection of industrial buildings in the Bajío: The assembly of metal structures requires daily segment releases. An inspector needs lightweight equipment that won't tire them after 8 hours of climbing up and down scaffolding stairs.

• Oil & Gas Sector in the Gulf: The platforms face high salinity and humidity. Here, having a sealed equipment (IP65/IP67) prevents a sudden rain or sea spray from damaging the motherboard and halting the work.

• Infrastructure on the coasts: Inspections in confined or hard-to-reach spaces require the operator to be able to hold the equipment with one hand and the probe with the other, without compromising their safety.

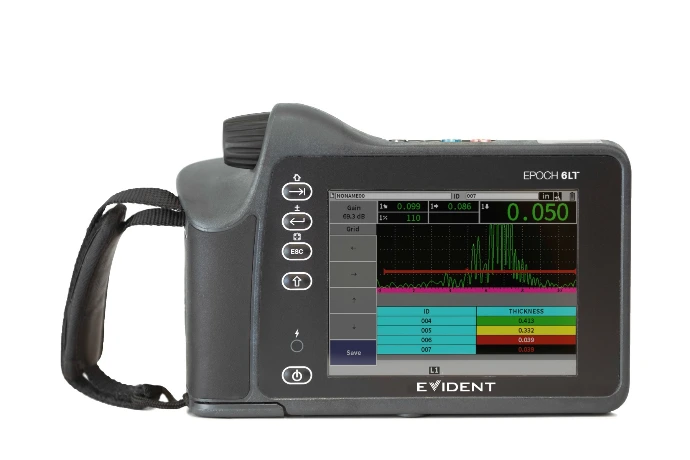

Why is the EPOCH 6LT detector the standard for the AWS code?

When we talk about ultrasonic inspection under strict regulations, the manual calculation of the indication factor (Rating) used to be a headache prone to errors. The EPOCH 6LT flaw detector eliminates this friction by integrating an optional AWS D1.1/1.5 welding classification calculator. This software provides a dynamic indication of the reflector, automating the math to achieve efficient inspections without the errors of pencil and paper, covering not only conventional steel structures but also bridges (D1.5).

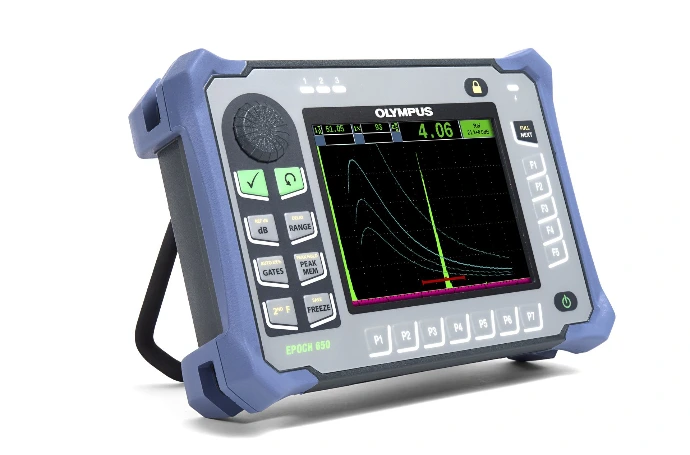

But to be a strategic ally in field non-destructive testing, a team needs more than good software; it needs pure power and signal quality. The EPOCH 6LT inherits the wide dynamic range of emission and reception from the EPOCH 650, with a more compact design, in a chassis weighing just 890 grams designed for work at height or rope access.

Specifications that solve real problems

In the real world, not all welds are perfect and not all steels are clean. This is where the specifications of the 6LT generate greater confidence:

• Deep penetration and clean signal:It features an adjustable square wave emitterPerfectSquare™and a voltage range from 100 V to 400 V.

•


• What is this useful for on the job site?

•


• If you are inspecting thick plates or materials that greatly attenuate sound, that power ensures you penetrate the entire piece. Combined with its eight groups of 100% digital filters, you can clean up acoustic noise, ensuring that what you see on the screen is a real defect and not static.

•


• Advanced defect sizing software: It's not enough to detect; you must measure accurately to know if the indication is a reason for rejection. The equipment includes highly flexible evaluation tools:

•


  • Dynamic DAC/TCG curves: They allow you to compare the amplitude of your signal against a standard reference curve. It includes customizable warning views from 20% to 80%, giving you a very clear visual margin to assess marginal echoes.

  • DGS/AVG Curves: They mathematically illustrate the relationship between the echo height, the size of the defect, and the distance from the probe. This is vital for evaluating equivalent sizes of reflectors without the need to carry multiple physical reference blocks on the scaffold.

What’s the result? The technician anchors themselves to the structure, adjusts the equipment with one hand using the rotary knob (even while wearing leather gloves), emits a powerful and clean signal, and sizes the defect instantly supported by its five customizable digital measurements. This is speed, industrial safety, and absolute reliability in weld evaluation.

Traditional UT vs. EPOCH 6LT

To understand the impact in practice, let's compare the experience of using ultrasound equipment from previous generations with the optimization offered by the EPOCH 6LT.

In the field, inspector fatigue is the main enemy of precision. Providing technicians with equipment that weighs less than a kilogram, does not break down if it rains, and automates the mathematics of the AWS standard directly translates into fewer man-hours per project and impeccable reports without rejections due to calculation errors.

How is compliance with the AWS D1.1 standard guaranteed in civil works in Mexico?

• Structural Safety and NOM-031-STPS-2011: This standard requires strict conditions to prevent risks in construction works. A failure due to a lack of fusion in a critical connection is not just a rework; it is an imminent safety risk. Validating the joints with digital traceability ensures that the structure meets the highest protection standards for assembly.
•

• Support for the Inspector (NMX-B-482-CANACERO-2016): Technology is only as good as the technician operating it. This Mexican standard regulates the certification of personnel conducting non-destructive testing. Providing your Level II inspectors with equipment that weighs 890 grams and automates AWS calculations allows the certified technician to focus their expertise on the critical interpretation of defects, reducing fatigue and the margin of error.
